Swaged Wire Rope

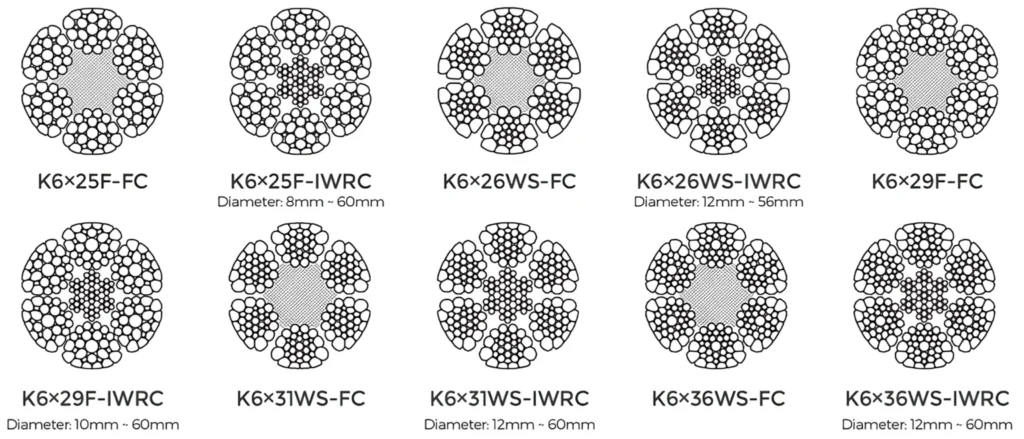

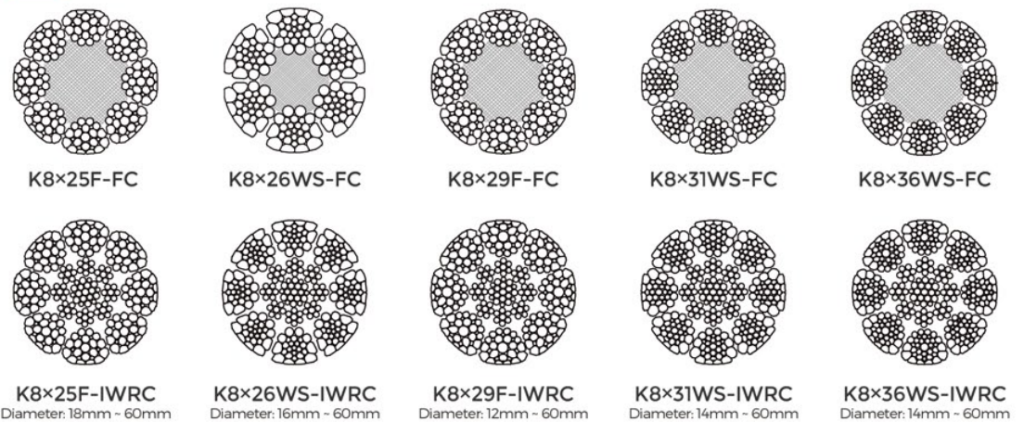

1. Construction and Design

Swaged wire ropes are usually made from high-strength steel wires twisted into strands, which are then wound into the final rope configuration. The swaging process involves pressing the rope or strand into a die under high pressure to compress the strands tightly together. This can be done at the rope ends to form sockets or along the rope body in certain designs.

Common features include:

• Uniform diameter: Swaging ensures consistent rope diameter, which is critical for fitting through sheaves or pulleys.

• Enhanced mechanical properties: Compression increases the contact between wires, reducing internal movement and wear.

• Customizable end fittings: Swaged ends can accommodate sockets, thimbles, or threaded fittings.

2. Advantages

Swaged wire ropes offer several benefits over conventional wire ropes:

• High load-bearing capacity: The swaging process distributes stress evenly, increasing the rope’s breaking strength.

• Improved fatigue resistance: Reduced internal wire movement lowers the risk of wire fatigue under cyclic loading.

• Compact and space-saving: Swaged ropes can be terminated without bulky hardware, useful for limited-space applications.

• Corrosion protection options: Often combined with galvanization or plastic coating for harsh environments.

• Precision and safety: Ideal for critical lifting and rigging applications where precise tolerances are required.

3. Applications

Swaged wire ropes are widely used in industries where reliability, strength, and precision are critical:

• Cranes and hoisting equipment: For safe and efficient lifting of heavy loads.

• Marine and offshore operations: For mooring lines, winches, and rigging where corrosion resistance is essential.

• Mining and construction: For draglines, shovels, and other heavy machinery requiring high-strength ropes.

• Industrial and elevator systems: For precision-controlled lifting and load handling.

• Forestry and logging: For winching, skidding, and cable yarding operations, where ropes must withstand high tension and abrasion.

4. Standards and Quality Control

Swaged wire ropes are manufactured according to international standards such as EN 12385, ISO 2408, and DIN 3051, ensuring consistent quality, safety, and performance. Key quality checks include:

• Rope tensile testing

• Swaged end pull testing

• Dimensional accuracy verification

• Corrosion protection assessment

5. Maintenance and Handling

Although swaged wire ropes are robust, proper handling extends their service life:

• Avoid bending the rope over sheaves smaller than recommended diameters.

• Regularly inspect for wear, corrosion, and end fitting integrity.

• Apply lubrication or protective coatings if operating in corrosive environments.

Summary:
Swaged wire ropes combine the strength and flexibility of steel wire ropes with the precision and reliability of mechanical end fittings. Their high load capacity, fatigue resistance, and versatility make them indispensable in marine, industrial, forestry, and heavy-lifting applications.
